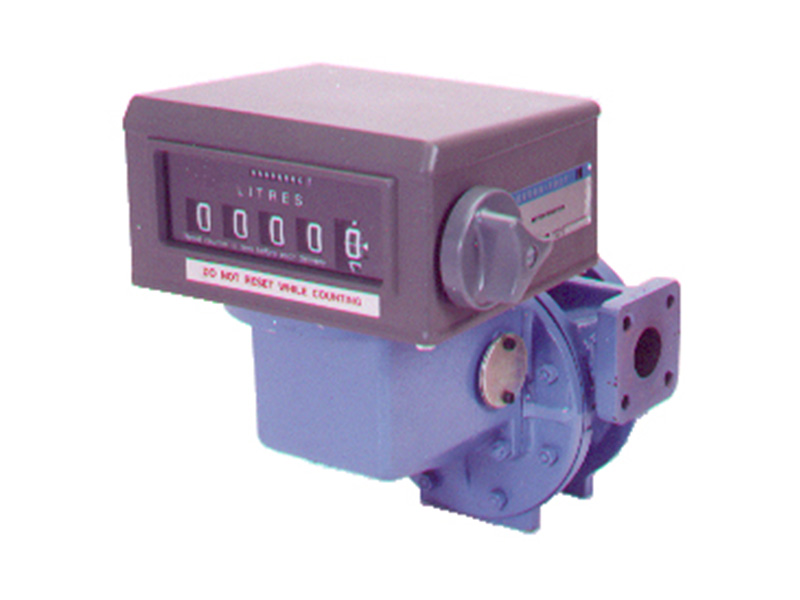

C35 PD Flow Meter (1/2″ & 2″)

The C35 PD Meter is a sturdy, compact & highly accurate Positive Displacement Flow Meter. Proven design & material selection make it possible to use it extensively for almost every sector of industry & process control. This is fast moving products in construction, process, mining industries.

DESIGN FEATURES

  • High accuracy
  • Low pressure drop
  • Stepless calibration adjustment
  • Wear compensating vane design
  • Mechanical or electronic readout
  • Suitable for a wide variety of liquids

PRINCIPLE OF OPERATION

The product enters the meter through the inlet manifold and causes the rotor to revolve by pressure on the blades.

The proximity of the rotor to the casing forms an efficient seal, whilst the profile of the casing ensures that the blades are guided through the measuring crescent. The vane blades divide the liquid into segments, the liquid segments are counted as they are displaced, giving a positive rotary motion to the rotor.

The rotor spindle transmits the drive through a pressure tight lip seal in the meter front cover to the calibrating mechanism, which calibrates the meter output for a correct counter readout.

APPLICATIONS

  • Batching, blending and dispensing in chemical and process industries, petroleum companies, paints, solvents, pharmaceutical and other fields
  • Container filling
  • Tank truck / rail wagon unloading
